RAC20-48SK | RECOM
20W AC/DC-Converter 'POWERLINE' 2"x1" 3kV reg
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
14.4466 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
14.45 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4466 €
10 pcs.
13.7921 €
50 pcs.
12.6735 €
100 pcs.
11.8524 €
*incl. VAT plus shipping costs
Subject to prior sale

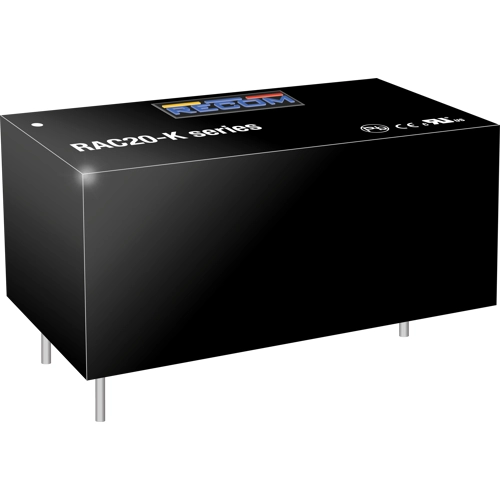

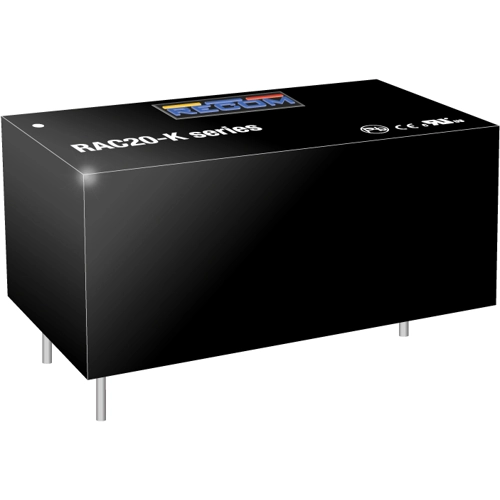

AC/DC converter, RAC20-48SK, RECOM
The RAC20-48SK is a highly efficient PCB-mount power conversion module with ultra-low energy losses especially in light load conditions, making it a benchmark for always-on and standby mode operations, which are typically coming along with IoT and smart applications. The power supply unit covers worldwide mains input range of 85VAC up to 264VAC and comes with international safety certifications for industrial, AV and ITE as well as household standards. This AC/DC module operates in a temperature range of -40°C to +85°C and offers fully protected single or dual outputs as well as EMC class B compliance without the need of any external components.
Features
- Ultra-high efficiency over entire load range
- EMC compliant without external components
- No load power consumption 40mW typ
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 410 mA | |
| Output voltage DC | 48 VDC | |
| Input voltage AC | 85-264 VAC | |
| Power | 20 W | |
| efficiency | 85 % | |
| Design | through hole | |
| Isolation voltage | 3 kV | |
| Length | 52.5 mm | |
| Width | 27.4 mm | |
| Height | 23 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
