RAC06-24SC | RECOM
AC/DC converter, 80-264 V, 6 W, 1 output, 24 V, RAC06-24SC
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
28.1792 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
28.18 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1792 €
5 pcs.
25.6921 €
10 pcs.
24.9781 €
*incl. VAT plus shipping costs
Subject to prior sale

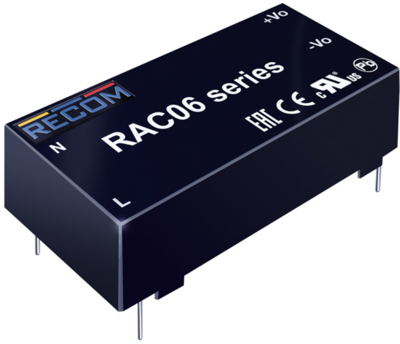

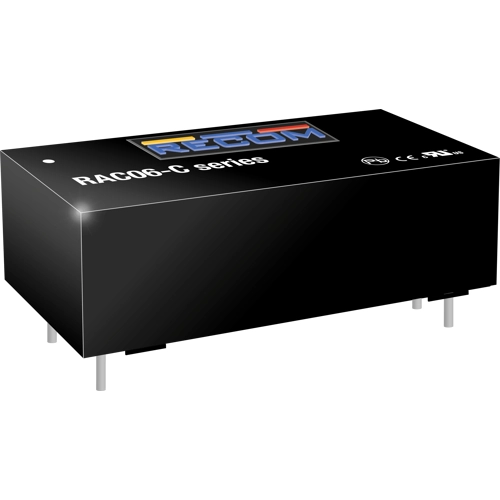

AC/DC Converter, RAC06-24SC, RECOM
Compact, low cost, high efficiency, universal input switching AC/DC power module for PCB or wired mounting with single or dual outputs. CE marked and UL/cUL Certified.
Features
- Very Compact AC-DC Power Supply
- Single and Dual Output Versions
- Universal Input Voltage Range
- Low Output Ripple and Noise
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 250 mA | |
| Output voltage DC | 24 V | |
| Input voltage AC | 80-264 V | |
| Power | 6 W | |
| efficiency | 79 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 50.9 mm | |
| Width | 25.5 mm | |
| Height | 16.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
