RAC06-05SC | RECOM
AC/DC converter, 80-264 V, 6 W, 1 output, 5 V, RAC06-05SC
Unit Price (€ / pc.)
25.823 € *
Standard delivery time from the manufacturer is: 26 Weeks

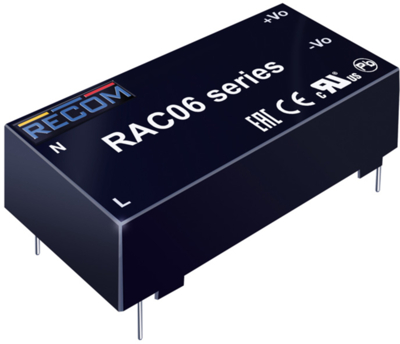

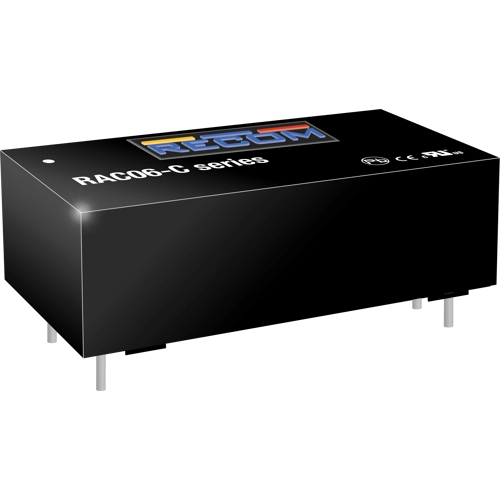

AC/DC Converter, RAC06-05SC, RECOM
Compact, low cost, high efficiency, universal input switching AC/DC power module for PCB or wired mounting with single or dual outputs. CE marked and UL/cUL Certified.
Features
- Very Compact AC-DC Power Supply
- Single and Dual Output Versions
- Universal Input Voltage Range
- Low Output Ripple and Noise
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1.2 A | |
| Output voltage DC | 5 V | |
| Input voltage AC | 80-264 V | |
| Power | 6 W | |
| efficiency | 75 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 50.9 mm | |
| Width | 25.5 mm | |
| Height | 16.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
