RAC05-12SC | RECOM
AC/DC converter, 80-264 V, 5 W, 1 output, 12 V, RAC05-12SC
Unit Price (€ / pc.)
24.7877 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
24.79 € *
Price list
Quantity
Price per unit*
1 pcs.
24.7877 €
5 pcs.
22.5862 €
10 pcs.
21.9674 €
*incl. VAT plus shipping costs
Subject to prior sale

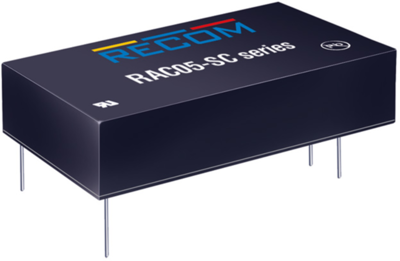

AC/DC Converter, RAC05-12SC, RECOM
Compact, low cost, high efficiency, universal input switching AC/DC power module for PCB or wired mounting with single or dual outputs. CE marked and UL/cUL certified
Features
- Short Circuit Protection
- Meet EN55022 Class B
- Low Standby Power Consumption
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 420 mA | |
| Output voltage DC | 12 V | |
| Input voltage AC | 80-264 V | |
| Power | 5 W | |
| efficiency | 76 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 50.9 mm | |
| Width | 25.5 mm | |
| Height | 15.65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
