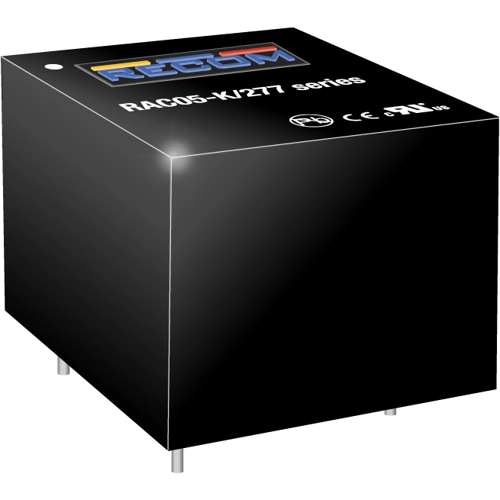

RAC05-05SK/277 | RECOM
5W AC/DC-Converter 'POWERLINE' 4.2kV reg
Unit Price (€ / pc.)
12.3284 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
12.33 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3284 €
10 pcs.
11.7929 €
50 pcs.
10.8171 €
100 pcs.
10.1269 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converter, RAC05-05SK/277, RECOM
The RAC05-05SK/277 is a multipurpose 5 watt AC/DC power supply for enhanced mains input conditions rated to overvoltage category OVC III from 90VAC up to 305VAC with an extra wide operating temperature range from -40°C to +90°C. This module is designed to supply worldwide applications in automation, Industry 4.0, IoT, household and smart buildings. For worldwide use it comes with international safety certifications for industrial, domestic and ITE as well as household standards. With both PCB-mount and wired packages, fully protected outputs, and EMC class B emissions compliance without any external components, this is the easiest to use modular power solution in the industry.
Features
- Overvoltage and overcurrent protected
- EMC compliant without external components
- Encapsulated module with pins or wired
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1000 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 85-305 VAC | |
| Power | 5 W | |
| efficiency | 80 % | |
| Design | PCB mounting | |
| Isolation voltage | 4.2 kV | |
| Length | 31.7 mm | |
| Width | 26.7 mm | |
| Height | 21.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
