RAC04-24SC/W | RECOM
AC/DC converter, 80-264 V, 4 W, 1 output, 24 V, RAC04-24SC/W
Unit Price (€ / pc.)
17.8857 € *
Standard delivery time from the manufacturer is: On Request

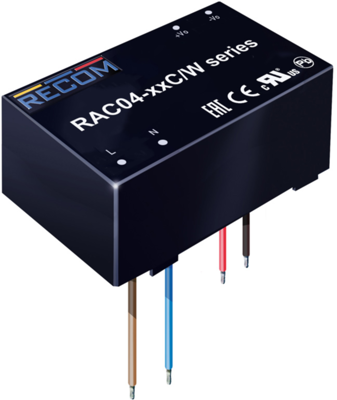

AC/DC Converter, RAC04-24SC/W, RECOM
The ultra-compact wired RAC04-C/W modules are available with output voltages of 3.3, 5, 9, 12, 15, and 24V, and the input-to-output isolation is approximately 3kVAC/1min. With a standby consumption of 100mW typical, the mini power supplies are particularly suitable for energy-saving sleep mode and standby applications
Features
- Operating Temperature Range of -25°C to +85°C
- Short Circuit and Overcurrent Protection
- Low Cost AC/DC Power Supply
- EN, UL and CE certified
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 167 mA | |
| Output voltage DC | 24 V | |
| Input voltage AC | 80-264 V | |
| Power | 4 W | |
| efficiency | 79 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 37.8 mm | |
| Width | 23.9 mm | |
| Height | 16.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
