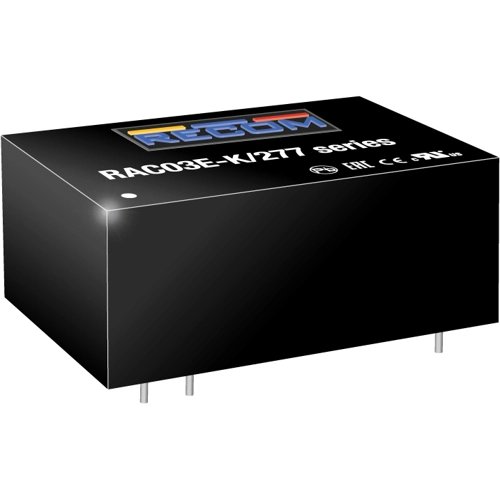

DC/DC converter, RAC03E-05SK/277, RECOM
The cost-efficient RAC03E-05SK/277 AC/DC converter has an input range of nominal 100VAC to an enhanced 277V, certified to OVC III overvoltage category. It delivers an uncompromising 3 watts of output power with tightly regulated outputs from 3.3V to 24VDC. This low profile, encapsulated print-mountable module in an industry-standard pinout delivers full output power from -40°C to +75°C and is certified for operation up to +85°C air ambient with output power reduced to 1.8W. This AC/DC module holds international safety certifications for industrial, domestic, ITE, and household use. With 4kVAC input-to-output isolation, it is suitable for worldwide applications in automation control, industry 4.0, IoT, and household automation. Due to its LPS (Limited Power Source) and reinforced class II installation rating for floating outputs, along with its significantly wide margin to class B EMC compliance without external components, this is one of the easiest to use and most versatile power modules in the industry.
