RAC03-12SC | RECOM
AC/DC converter, 80-264 V, 3 W, 1 output, 12 V, RAC03-12SC
Unit Price (€ / pc.)
17.8024 € *
Standard delivery time from the manufacturer is: On Request

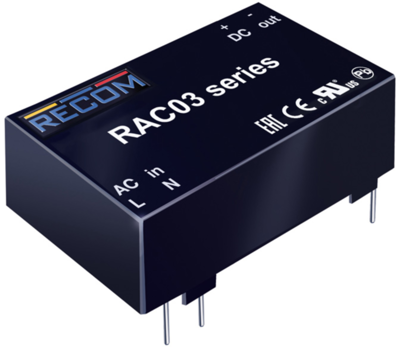

AC/DC Converter, RAC03-12SC, RECOM
The RAC03-C series is an ultra-compact universal input AC/DC power module for PCB mounting. It features high effi ciency, low standby power, high operating temperature, soft start, low output ripple/ noise, overload and short-circuit protection as well as a built-in EMC Class B fi lter. Output voltages range from 3.3VDC to 24VDC, including a 3.8VDC version designed for battery chargers and GSM modems.
Features
- Compact low profi le AC-DC power supply
- 80mW no load power consumption
- Class II power supply with 3kVAC isolation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 250 mA | |
| Output voltage DC | 12 V | |
| Input voltage AC | 80-264 V | |
| Power | 3 W | |
| efficiency | 76 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 37.8 mm | |
| Width | 23.9 mm | |
| Height | 16.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
