RAC03-05SER/277 | RECOM
3W AC/DC-Converter 'POWERLINE' W 3kV reg
Unit Price (€ / pc.)
30.1546 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
30.15 € *
Price list
Quantity
Price per unit*
1 pcs.
30.1546 €
10 pcs.
28.7742 €
50 pcs.
27.5009 €
100 pcs.
26.7155 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converter, RAC03-05SER/277, RECOM

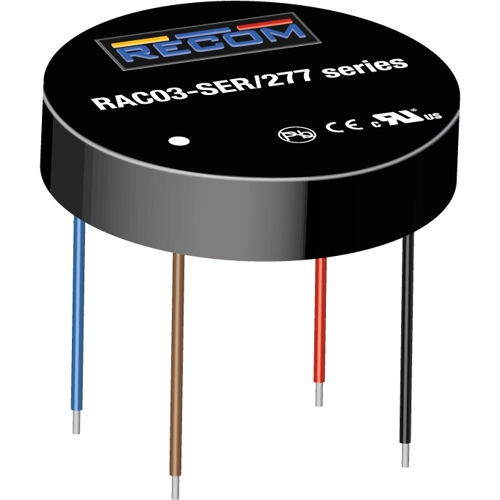

The module of the RAC03-05SER/277 is a regulated AC/DC converter with 3kVAC isolation and a round, flat shape. This product has been designed to offer low stand-by consumption and an ultra-wide input voltage range. Typical uses include a variety of applications in building automation, security systems, and communication systems.
Features
- 40mW max. no load power consumption
- High efficiency up to 76%
- SCP, OVP protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 600 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 100-277 VAC | |
| Power | 3 W | |
| efficiency | 70 % | |
| Design | chassis mounting | |
| Isolation voltage | 3 kV | |
| Length | 50.3 mm | |
| Width | 50.3 mm | |
| Height | 11 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
