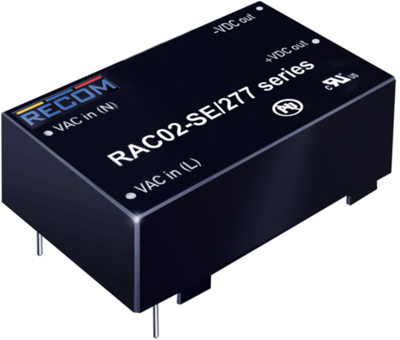

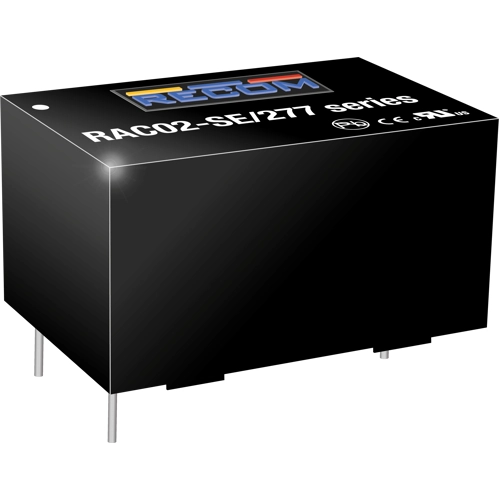

RAC02-05SE/277 | RECOM
AC/DC converter, 80-305 V, 2 W, 1 output, 5 V, RAC02-05SE/277
Order No.: 28C8968
EAN: 4099891341084
MPN:
RAC02-05SE/277
20001000
Unit Price (€ / pc.)
21.4795 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
21.48 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4795 €
5 pcs.
19.3137 €
*incl. VAT plus shipping costs
Subject to prior sale
AC/DC Converter, RAC02-05SE/277, RECOM
The ultra-compact RAC02-SE/277 modules are available with output voltages of 3.3, 5, 12 and 24V, and the input-to-output isolation is 3kVAC/1min. With a standby consumption of 35mW maximum, the mini power supplies are particularly suitable for energy-saving sleep mode and standby applications. Because of its compact design (height
Features
- SCP, OVP Protection
- Wide Operating Temperature Range: -40°C to +85°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 400 mA | |
| Output voltage DC | 5 V | |
| Input voltage AC | 80-305 V | |
| Power | 2 W | |
| efficiency | 70 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 33.7 mm | |
| Width | 22.2 mm | |
| Height | 17.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
