RAC02-05SE/277/W | RECOM
AC/DC converter, 85-305 V, 2 W, 1 output, 5 V, RAC02-05SE/277/W
Unit Price (€ / pc.)
19.4565 € *
Standard delivery time from the manufacturer is: 26 Weeks

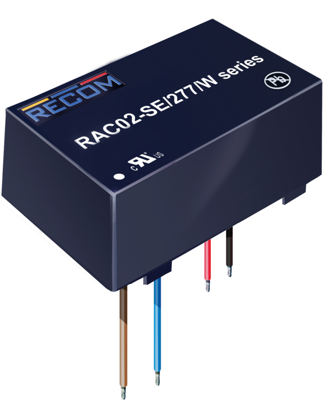

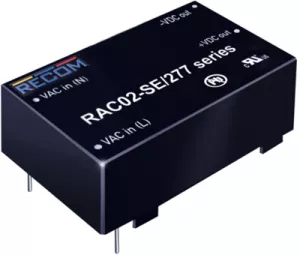

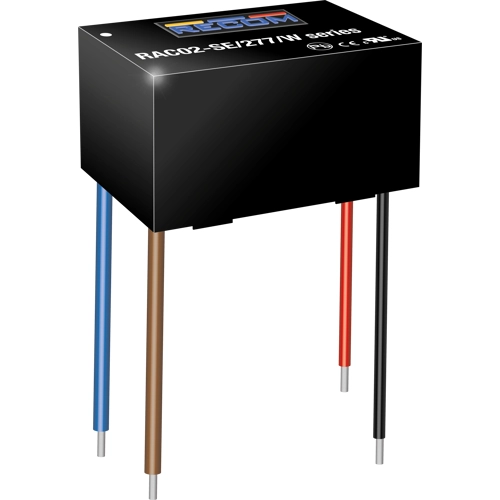

AC/DC Converter, RAC02-05SE/277/W, RECOM
The ultra-compact wired RAC02-SE/277/W modules are available with output voltages of 3.3, 5, 12 and 24V, and the input-to-output isolation is 3kVAC/1min. With a standby consumption of 35mW maximum, the mini power supplies are particularly suitable for energy-saving sleep mode and standby applications. Because of its compact design (height
Features
- Isolated Output 3kVAC / 1 min
- SCP, OVP Protection
- Universal Input 85-305VAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 400 mA | |
| Output voltage DC | 5 V | |
| Input voltage AC | 85-305 V | |
| Power | 2 W | |
| efficiency | 70 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 33.7 mm | |
| Width | 22.2 mm | |
| Height | 17.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
