RAC01-3.3SC | RECOM
AC/DC converter, 80-264 V, 1 W, 1 output, 3.3 V, RAC01-3.3SC
Unit Price (€ / pc.)
16.2911 € *
Standard delivery time from the manufacturer is: On Request

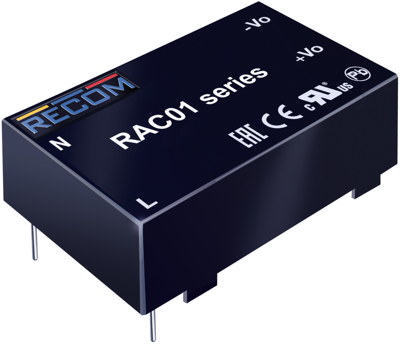

AC/DC Converter, RAC01-3.3SC, RECOM
The RAC01-SC and RAC02-SC series are ultra-compact universal input AC/DC power modules for PCB mounting. They feature high efficiency, low standby power, high operating temperature, soft start and short-circuit protection as well as a built-in EMC Class B filter. Output voltages range from 3.3VDC to 24VDC.
Features
- Ultracompact Low Profile AC-DC Power Supply
- Ultra-low 30mW Standby Power Consumption
- Low Output Ripple
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 300 mA | |
| Output voltage DC | 3.3 V | |
| Input voltage AC | 80-264 V | |
| Power | 1 W | |
| efficiency | 65 % | |
| Design | PCB module | |
| Isolation voltage | 3 kV | |
| Length | 33.7 mm | |
| Width | 22.2 mm | |
| Height | 17.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
