NYS230 | REAN

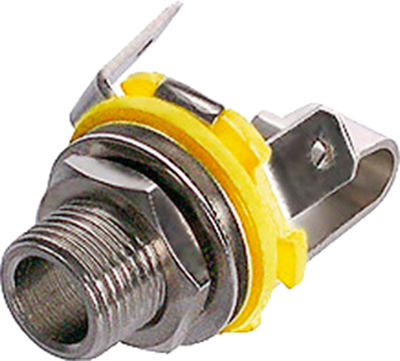

6.35 mm jack chassis socket, 3 pole (stereo), solder connection, metal, NYS230
Images may differ
Total price
( 1.7731 € * / pcs.)
1.77 €
Available: 16 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
1.7731 €
25 pcs.
1.5113 €
100 pcs.
1.3923 €
250 pcs.
1.3209 €
1000 pcs.
1.2138 €
*incl. VAT plus shipping costs
Description
Chassis jacks, 3-pole, type NEUTRIK/REAN NYS 230.
6.35 mm, for front-panel thickness 4.0 mm, with bushing mount; Housing: CuZn39Pb3, nickel-plated. Contacts: CuSn6. Contact finish: SnCe. Operating temperatures: –20 to +70 °C.
Type: NYS 230, chassis jack
Technical specifications
| Version | mounting socket | |
| Shell Material | metal | |
| Contact connection | solder connection | |
| contact surface | nickel-plated | |
| Assembly | built-In mounting | |
| Pin Diameter | 6.35 mm | |
| Pin number | 3 pole |
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
