CF0438-000 | Raychem
TE Connectivity/Raychem CF0438-000
Order No.: 34P5799
EAN: 4099889714623
MPN:
CF0438-000
TXR54AB00-3620AI
Unit Price (€ / pc.)
580.2678 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
Total Price:
29,013.39 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
580.2678 €

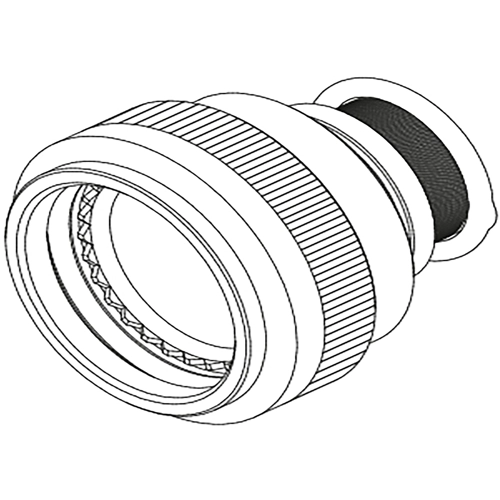

Ruggedized Backshell and Adapter, CF0438-000, TE Connectivity
Pluggable I/O Accessory Type: Tinel-Lock Adapter, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 36, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 54, Adapter Entry Size: 20, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-31.8 mm, Cable Diameter Range: 12.7-20.7 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Cable diameter | 12.7 to 20.7 mm | |
| Contact connection | crimp connection | |
| Version | adapter | |
| Shell Material | aluminum alloy | |
| Orientation | straight |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium, lead |
| SVHC free | No |
| RoHS conform | No |
