566297-000 | Raychem
TE Connectivity/Raychem 566297-000
Order No.: 34P5528
EAN: 4099889712131
MPN:
566297-000
TXR40AB90-2008BI
Unit Price (€ / pc.)
376.5517 € *
Standard delivery time from the manufacturer is: 39 Weeks

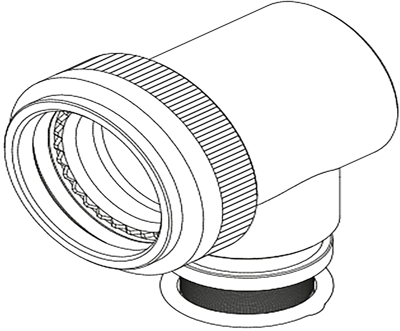

Ruggedized Backshell and Adapter, 566297-000, TE Connectivity
Termination Device Included: TR08BI, Adapter Angle: 90, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 21,G, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 40, Adapter Entry Size: 8, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-12.7 mm, Cable Diameter Range: 6.4-10.2 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Version | adapter | |
| Orientation | angled | |
| Cable diameter | 6.4 to 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Cadmium |
