486493-000 | Raychem
TE Connectivity/Raychem 486493-000
Order No.: 34P5802
EAN: 4099889714654
MPN:
486493-000
TXR54AB90-1006BI
Unit Price (€ / pc.)
466.4681 € *
Available: 0 pcs.
Leadtime: 43 Weeks **

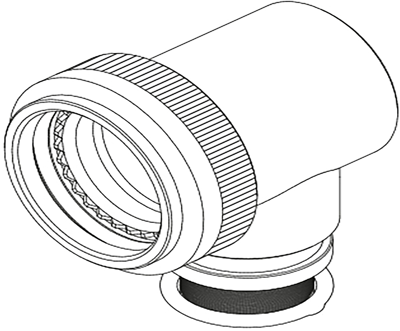

Ruggedized Backshell and Adapter, 486493-000, TE Connectivity
Termination Device Included: TR06BI, Adapter Angle: 90, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 10, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 54, Adapter Entry Size: 6, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-9.5 mm, Cable Diameter Range: 4.8-7.6 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Version | Adapter | |
| Shell Material | Aluminium | |
| Cable diameter | 4,8 bis 7,6 mm | |
| Contact connection | Crimpanschluss | |
| Orientation | abgewinkelt |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmium |
