169309-000 | Raychem
TE Connectivity/Raychem 169309-000
Order No.: 34P5476
EAN: 4099889711646
MPN:
169309-000
TXR40AB00-2416AI
Unit Price (€ / pc.)
348.8842 € *
Available: 0 pcs.
Available in 5 Days: 1 pcs.
Leadtime: 41 Weeks **

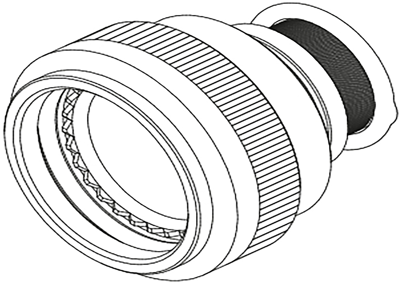

Ruggedized Backshell and Adapter, 169309-000, Raychem
Termination Device Included: TR16AI, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 25,J, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 40, Adapter Entry Size: 16, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-25.4 mm, Cable Diameter Range: 12.7-20.3 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Cable diameter | 12.7 to 20.3 mm | |
| Version | adapter | |
| Shell Material | aluminum | |
| Orientation | straight |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium |
| SVHC free | No |
| RoHS conform | Yes |
