145697-000 | Raychem
TE Connectivity/Raychem 145697-000
Unit Price (€ / pc.)
258.3252 € *
Available in 5 Days: 98 pcs. - if ordered today
Total Price:
258.33 € *
Price list
Quantity
Price per unit*
1 pcs.
258.3252 €
2 pcs.
222.9465 €
*incl. VAT plus shipping costs
Subject to prior sale

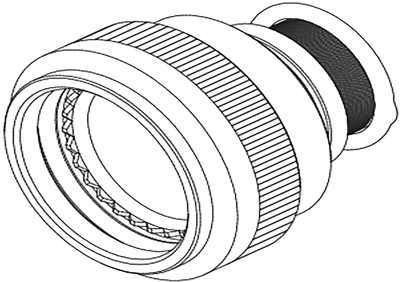

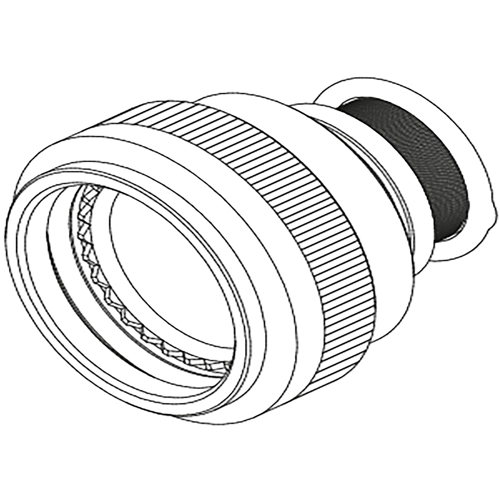

Ruggedized Backshell and Adapter, 145697-000, Raychem
Termination Device Included: TR06AI, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 10,11, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 41, Adapter Entry Size: 6, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-9.5 mm, Cable Diameter Range: 4.8-7.6 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Cable diameter | 4.8 to 7.6 mm | |
| Orientation | straight | |
| Version | adapter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Cadmium, lead |
| RoHS conform | No |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
