109349-000 | Raychem
TE Connectivity/Raychem 109349-000
Order No.: 34P5714
EAN: 4099889713787
MPN:
109349-000
TXR41AB00-1810AI
Unit Price (€ / pc.)
419.7725 € *
Available: 0 pcs.
Available in 5 Days: 1 pcs.
Leadtime: 39 Weeks **

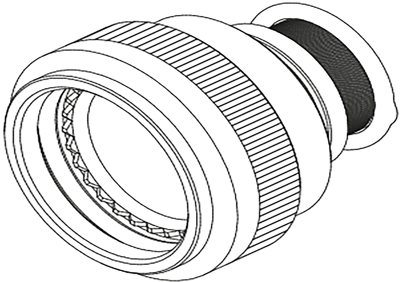

Ruggedized Backshell and Adapter, 109349-000, Raychem
Termination Device Included: TR10AI, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 18,19, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 41, Adapter Entry Size: 10, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-15.9 mm, Cable Diameter Range: 7.9-12.7 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Cable diameter | 7.9 to 12.7 mm | |
| Version | adapter | |
| Shell Material | aluminum | |
| Orientation | straight |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium, lead |
| SVHC free | No |
| RoHS conform | No |
