099117-000 | Raychem
TE Connectivity 099117-000
Order No.: 34P5815
EAN: 4099889714777
MPN:
099117-000
TXR54SJ00-1004AI
Unit Price (€ / pc.)
253.7318 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
12,686.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
253.7318 €

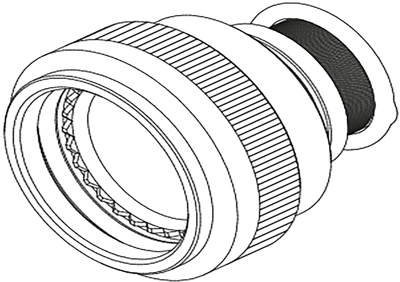

Ruggedized Backshell and Adapter, 099117-000, TE Connectivity
Termination Device Included: TR04AI, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 10, Backshell Material: Corrosion Resisting Steel, Adapter Plating Material: Passivated (SAE AMS-QQ-P-35 or MIL-S-5002), TE Adapter Code: 54, Adapter Entry Size: 4, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-6.4 mm, Cable Diameter Range: 3.2-5.1 mm, Salt Spray Resistance: 1000 Hr, Operating Temperature Range: -65-260 °C.
Technical specifications
| Cable diameter | 3.2 to 5.1 mm | |
| Version | adapter | |
| Shell Material | aluminum | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
