093385-000 | Raychem
TE Connectivity/Raychem 093385-000
Order No.: 34P5431
EAN: 4099889711196
MPN:
093385-000
TXR40AB00-1612BI
Unit Price (€ / pc.)
221.8993 € *
Available in 5 Days: 57 pcs. - if ordered today

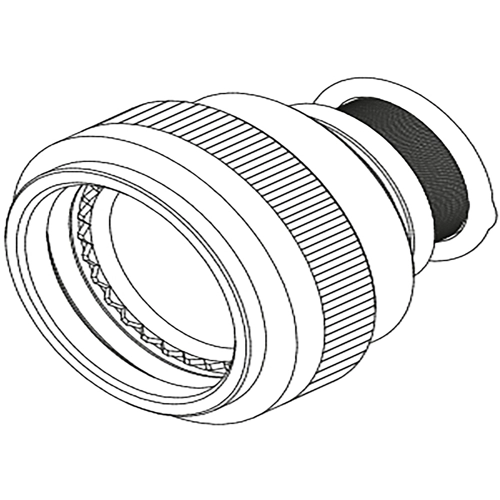

Tinel-Lock-Adapter, 093385-000, TE Connectivity
Pluggable I/O Accessory Type: Tinel-Lock Adapter, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 17,E, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 40, Adapter Entry Size: 12, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-19.1 mm, Cable Diameter Range: 9.5-15.2 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Cable diameter | 9.5 to 15.2 mm | |
| Orientation | straight | |
| Version | adapter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium |
| RoHS conform | Yes |
| SVHC free | No |
