081649-000 | Raychem
TE Connectivity/Raychem 081649-000
Order No.: 34P5537
EAN: 4099889712223
MPN:
081649-000
TXR40AB90-2414BI
Unit Price (€ / pc.)
373.4696 € *
Standard delivery time from the manufacturer is: 39 Weeks

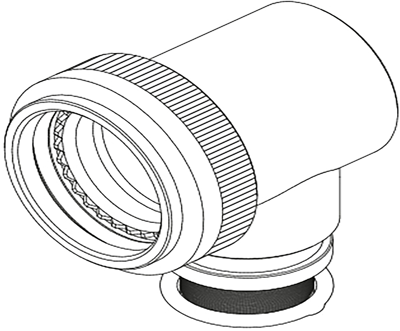

Ruggedized Backshell and Adapter, 081649-000, TE Connectivity
Termination Device Included: TR14BI, Adapter Angle: 90, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 25,J, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 40, Adapter Entry Size: 14, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-22.2 mm, Cable Diameter Range: 11.1-17.8 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable diameter | 11.1 to 17.8 mm | |
| Version | adapter | |
| Shell Material | aluminum | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium, lead |
| SVHC free | No |
| RoHS conform | No |
