006277-000 | Raychem
TE Connectivity/Raychem 006277-000
Order No.: 34P5810
EAN: 4099889714739
MPN:
006277-000
TXR54AC90-1004AI
Unit Price (€ / pc.)
223.3154 € *
Available in 5 Days: 44 pcs. - if ordered today

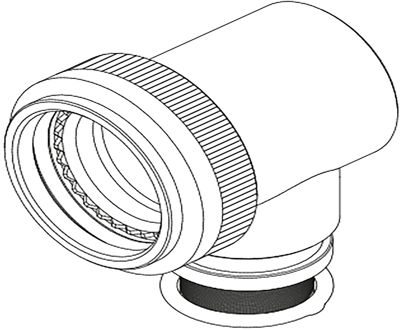

Ruggedized Backshell and Adapter, 006277-000, TE Connectivity
Termination Device Included: TR04AI, Adapter Angle: 90, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 10, Color: Bright, Backshell Material: Aluminum, Adapter Plating Material: Electroless Nickel (AMS-C-26074), TE Adapter Code: 54, Adapter Entry Size: 4, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-6.4 mm, Cable Diameter Range: 3.2-5.1 mm, Salt Spray Resistance: 48 Hr, Operating Temperature Range: -65-200 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Cable diameter | 3.2 to 5.1 mm | |
| Version | adapter | |
| Contact connection | crimp connection | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
