6787873001 | Raychem
Insulated strand/wire, 6787873001
Unit Price (€ / mtr.)
2.4157 € *
Available in 5 Days: 3,348 mtr. - if ordered today

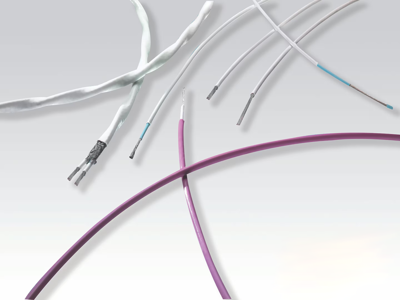

Insulated strand/wire, 6787873001, Raychem
The 6787873001 is insulated with modified radiation cross-linked ETFE polymer. This product provides one of the most comprehensive wiring product ranges for aerospace users, with a wide choice of conductor sizes and insulation wall thicknesses.
Features
- Resistant to electrical arc tracking
- Small size, ultra light weight
- Exceptional chemical resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 | |
| Colour | black | |
| Core insulation material | ETFE | |
| Outer diameter | 0.69 mm | |
| Cable material | copper, silver-plated | |
| Temperature range (active) | -65 to 200 °C | |
| Rated voltage | 450 V | |
| Test voltage | 2.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
