4805483001 | Raychem
Insulated strand/wire, 4805483001
Order No.: 71P9155
EAN: 4099891599577
MPN:
4805483001
Unit Price (€ / mtr.)
26.4418 € *
Available in 5 Days: 274 mtr. - if ordered today
Total Price:
370.19 € *
Price list
Quantity
Price per unit*
14 mtr.
26.4418 €
34 mtr.
25.3470 €
*incl. VAT plus shipping costs
Subject to prior sale

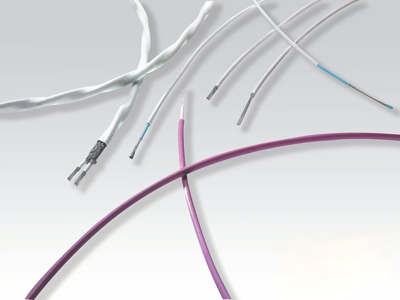

Twisted pair cable, 4805483001, Raychem
The 4805483001 is insulated with modified radiation cross-linked ETFE polymer. Combines the easy handling of a flexible wire with excellent scrape abrasion and cut-through characteristics. This wire has outstanding resistance to chemicals and solvents, excellent electrical arc track resistance, and is not susceptible to UV and moisture degradation. Also provides one of the most comprehensive wiring product ranges for aerospace users, with a wide choice of conductor sizes and insulation wall thicknesses.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | ETFE | |
| Outer diameter | 3.83 mm | |
| Test voltage | 2.5 kV | |
| Rated voltage | 600 V | |
| Cable material | copper, tin-plated | |
| Colour | black/red/yellow/green/blue | |
| Temperature range (active) | -65 to 150 °C | |
| AWG cross-section | AWG 24 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
