2820303009 | Raychem

PVDF-switching strand, Spec 44, AWG 22, black, outer Ø 1.19 mm, 2820303009

Order No.: 91F5112
EAN: 4099891168995
MPN:
2820303009
44A0111-22-0
Series: Spec 44
2820303009 Raychem Insulated stranded wires

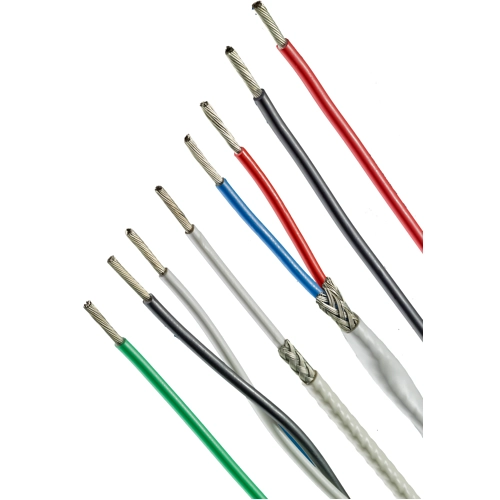

Image may differ
Unit Price (€ / mtr.)
0.6188 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1,237.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 mtr.
0.6188 €

Stranded wire, 2820303009, RAYCHEM

This wire has excellent chemical and mechanical properties, with outer sheath made of radiation cross-linked PVDF.

Features

  • Mechanical resistance
  • Good chemical resistance
  • Double-walled insulation
Technical specifications
Core insulation material PVDF
Colour black
Outer diameter 1.19 mm
AWG cross-section AWG 22
Test voltage 2.5 kV
Cable material copper, tin-plated
Temperature range (active) -65 °C to 150 °C
Rated voltage 600 V
Logistics
Country of origin GB
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
