2820133006 | Raychem
Insulated strand/wire, 2820133006
Order No.: 71P6963
MPN:
2820133006
Unit Price (€ / mtr.)
1.2852 € *
Available: 0 mtr.
Available in 5 Days: 1,175 mtr.
Leadtime: 16 Weeks **
Total Price:
358.57 € *
Price list
Quantity
Price per unit*
279 mtr.
1.2852 €
698 mtr.
1.2257 €
*incl. VAT plus shipping costs
**Subject to prior sale

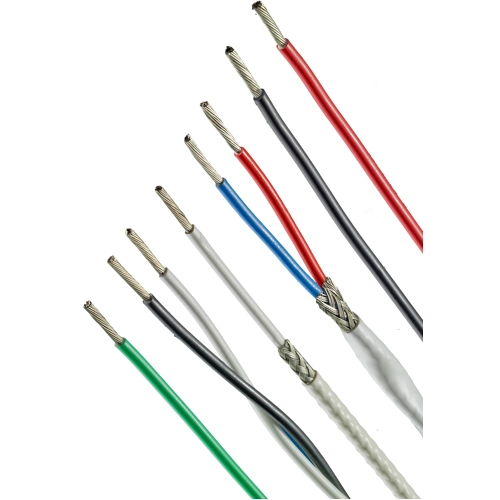

Twisted pair cable, 2820133006, Raychem
The 2820133006 has a dual wall construction which combines the outstanding physical and electrical characteristics of radiation crosslinked polyalkene with the excellent mechanical and chemical properties of radiation cross-linked polyvinylidene fluoride (PVDF). This product is highly flame retardant, nonmelting, does not cold flow, and though mechanically very tough, is easy to handle and install using conventional tools. Also is originally developed for aerospace and military requirements in applications of high density and complex circuitry.
Features
- Small size
- Light weight
- Resistant to most chemicals and electrical arc tracking
Technical specifications
| Rated voltage | 600 V | |
| Core insulation material | PVDF | |
| AWG cross-section | AWG 18 | |
| Cable cross-section | 1 mm² | |
| Outer diameter | 1.65 mm | |
| Temperature range (active) | -65 to 150 °C | |
| Colour | orange | |
| Cable material | copper, tin-plated | |
| Test voltage | 2.5 kV |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85444995 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
