1480293001 | Raychem
Insulated strand/wire, 1480293001
Order No.: 71P2210
EAN: 4099891599089
MPN:
1480293001
Unit Price (€ / mtr.)
2.6537 € *
Available in 5 Days: 1,474 mtr. - if ordered today
Total Price:
360.90 € *
Price list
Quantity
Price per unit*
136 mtr.
2.6537 €
338 mtr.
2.5347 €
*incl. VAT plus shipping costs
Subject to prior sale

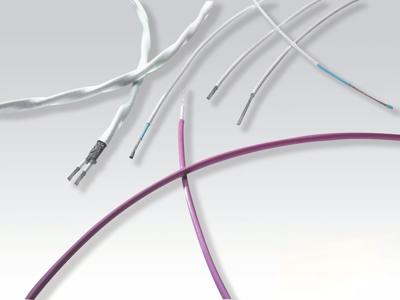

Twisted pair cable, 1480293001, Raychem
The 1480293001 is insulated with modified radiation cross-linked ETFE polymer. Combines the easy handling of a flexible wire with excellent scrape abrasion and cut-through characteristics. This wire has outstanding resistance to chemicals and solvents, excellent electrical arc track resistance, and is not susceptible to UV and moisture degradation. Also provides one of the most comprehensive wiring product ranges for aerospace users, with a wide choice of conductor sizes and insulation wall thicknesses.
Features
- Small size, ultra light weight
- Exceptional chemical resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -65 to 150 °C | |
| Colour | black/white/red | |
| AWG cross-section | AWG 16 | |
| Outer diameter | 3.83 mm | |
| Rated voltage | 600 V | |
| Test voltage | 2.5 kV | |
| Cable material | copper, tin-plated | |
| Core insulation material | ETFE |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
