NB14882001 | Raychem

Heatshrink tubing, 3:1, (3.2/1 mm), PE, black, NB14882001

Order No.: 72P2954
EAN: 4099891656478
MPN:
NB14882001
DWP-125-1/8-0-STK
Series: DWP-125

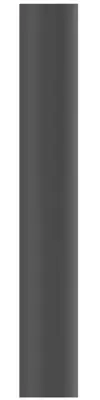

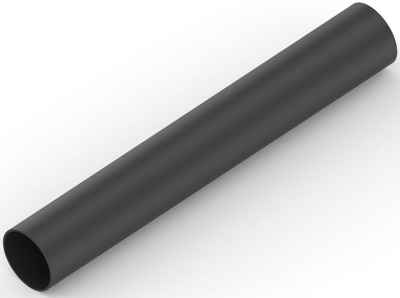

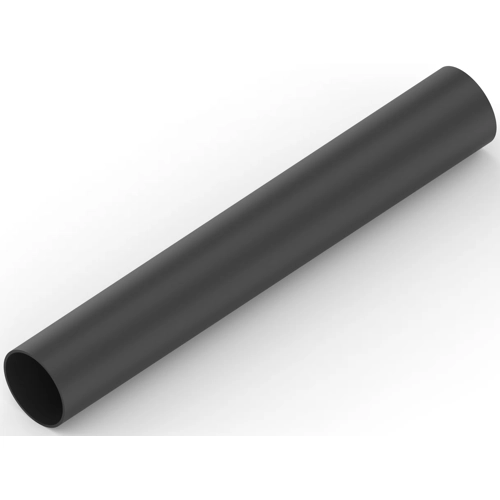

NB14882001 Raychem Heat Shrink Tubing Image 1

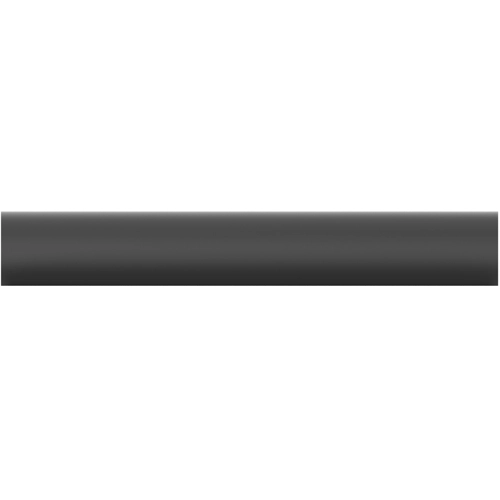

NB14882001 Raychem Heat Shrink Tubing Image 2

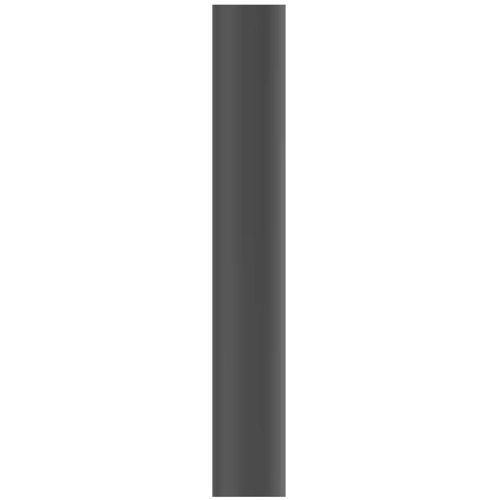

NB14882001 Raychem Heat Shrink Tubing Image 3
NB14882001 Raychem Heat Shrink Tubing Image 4
Image may differ
Unit Price (€ / pc.)
5.0575 € *
Available in 5 Days: 250 pcs. - if ordered today
Total Price:
5.06 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0575 €
10 pcs.
4.7005 €
25 pcs.
4.3792 €
50 pcs.
3.9865 €
*incl. VAT plus shipping costs
Subject to prior sale

Heat shrink tubing, NB14882001, Raychem

The NB14882001 is a heat-shrinkable tub that environmentally seals and protects irregular shapes, such as wire splices and break-outs. This product has an outer jacket of radiation-crosslinked, flexible, flame-retardant polyolefin. Medium wall provides increased mechanical protection while maintaining flexibility when installed.

Features

  • 3:1 shrink ratio allows for insulation and sealing of irregular shapes
  • RoHS compliant
Technical specifications
Filter Property Value
Inner diameter after shrinkage 1 mm
Inch Size 1/8
Material PE
Inner diameter before shrinkage 3.2 mm
max. operating temperature 110 °C
Shrinking rate 3:1
Shrinking temperature 80 °C
min. operating temperature -40 °C
Colour black
Wall thickness 1.07 mm
Length 1.22 m
Logistics
Property Value
Country of origin CZ
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
