NB14684001 | Raychem
Heatshrink tubing, 3:1, (9.5/3.2 mm), PE, black, NB14684001
Unit Price (€ / mtr.)
5.3550 € *
Available: 0 mtr.
Leadtime: 12 Weeks **
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
1 mtr.
5.3550 €
10 mtr.
4.9266 €
50 mtr.
4.4387 €
100 mtr.
3.9865 €
*incl. VAT plus shipping costs
**Subject to prior sale

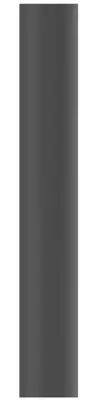

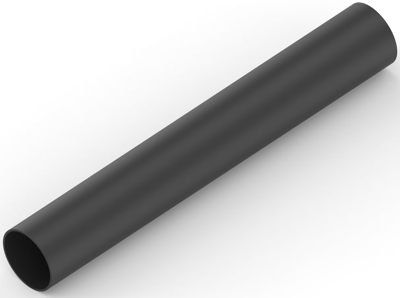

Heat shrink tubing, NB14684001, Raychem
The NB14684001 is a heat-shrinkable tub that has a cost-effective choice for many commercial and military applications; electrically insulates and protects in-line components, disconnect terminals, and splices. Bundles wires for very flexible light-duty harnesses. This product's low shrink temperature reduces installation time and the risk of damage to temperature-sensitive components. Also has higher temperature rating, better thermal stability, and higher resistance to physical abuse than noncrosslinked materials.
Features
- 2:1 shrink ratio
- Very flexible: doesn’t easily wrinkle when bent
- Highly flame-retardant
- Hot stamps extremely well
- RoHS compliant
Technical specifications
| Colour | black | |
| Shrinking temperature | 70 °C | |
| Inner diameter before shrinkage | 9.5 mm | |
| Wall thickness | 0.61 mm | |
| Inner diameter after shrinkage | 3.2 mm | |
| min. operating temperature | -55 °C | |
| Material | PE | |
| Inch Size | 3/8 | |
| max. operating temperature | 135 °C | |
| Shrinking rate | 3:1 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
