NB14634001 | Raychem

Heatshrink tubing, 3:1, (12.7/4.3 mm), PE, black, NB14634001

Order No.: 72P2950
EAN: 4099891656430
MPN:
NB14634001
VERSAFIT-3X-1/2-0-SP
Series: VERSAFIT

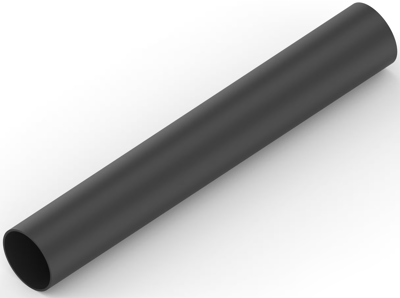

NB14634001 Raychem Heat Shrink Tubing Image 1

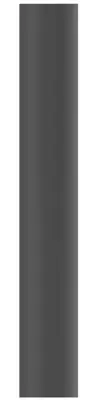

NB14634001 Raychem Heat Shrink Tubing Image 2
NB14634001 Raychem Heat Shrink Tubing Image 3
NB14634001 Raychem Heat Shrink Tubing Image 4
Image may differ
Unit Price (€ / mtr.)
7.5922 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
7.59 € *
Price list
Quantity
Price per unit*
1 mtr.
7.5922 €
5 mtr.
7.1995 €
10 mtr.
6.7354 €
25 mtr.
6.1404 €
*incl. VAT plus shipping costs
Subject to prior sale

Heat shrink tubing, NB14634001, Raychem

The NB14634001 is a heat-shrinkable tub that has a cost-effective choice for many commercial and military applications; electrically insulates and protects in-line components, disconnect terminals, and splices. Bundles wires for very flexible light-duty harnesses. This product's low shrink temperature reduces installation time and the risk of damage to temperature-sensitive components. Also has higher temperature rating, better thermal stability, and higher resistance to physical abuse than noncrosslinked materials.

Features

  • 2:1 shrink ratio
  • Very flexible: doesn’t easily wrinkle when bent
  • Highly flame-retardant
  • Hot stamps extremely well
  • RoHS compliant
Technical specifications
Filter Property Value
Inner diameter after shrinkage 4.3 mm
Inch Size 1/2
Material PE
Inner diameter before shrinkage 12.7 mm
max. operating temperature 135 °C
Shrinking rate 3:1
Shrinking temperature 70 °C
min. operating temperature -55 °C
Colour black
Wall thickness 0.61 mm
Logistics
Property Value
Country of origin CZ
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
