NB14032001 | Raychem
Heatshrink tubing, 2:1, (4.8/2.4 mm), PE, black, NB14032001
Unit Price (€ / pc.)
8.0920 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
8.09 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0920 €
10 pcs.
7.4494 €
50 pcs.
6.7116 €
100 pcs.
6.0333 €
*incl. VAT plus shipping costs
Subject to prior sale

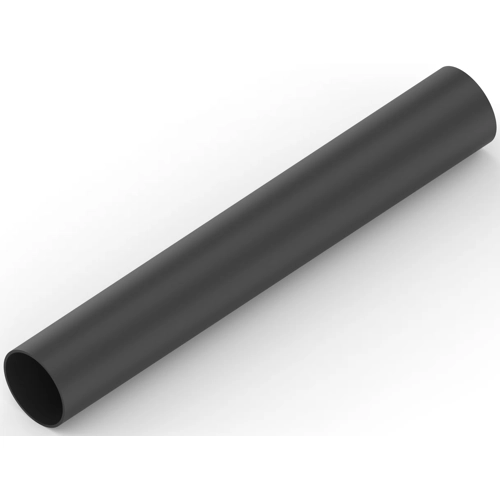

Heat shrink tubing, NB14032001, Raychem
The NB14032001 is a heat-shrinkable tub that seals and protects simple in-line splices, bimetallic joints, and components from fluids, moisture, and corrosion. This product has thin adhesive lining that bonds to outer tubing and surface below, forming a positive environmental seal. Also repairs damaged wire insulation, especially where flexibility is required and provides one step electrical insulation and moisture sealing.
Features
- 2:1 shrink ratio
- Flexibility of both tubing and adhesive
- Moisture seal that is resistant to bending of the substrate
- Good mechanical strength and cut-through resistance
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Shrinking temperature | 95 °C | |
| Inner diameter before shrinkage | 4.8 mm | |
| Wall thickness | 0.96 mm | |
| Length | 1.22 m | |
| Inner diameter after shrinkage | 2.4 mm | |
| min. operating temperature | -55 °C | |
| Material | PE | |
| Inch Size | 3/16 | |
| max. operating temperature | 110 °C | |
| Shrinking rate | 2:1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
