NB13982001 | Raychem

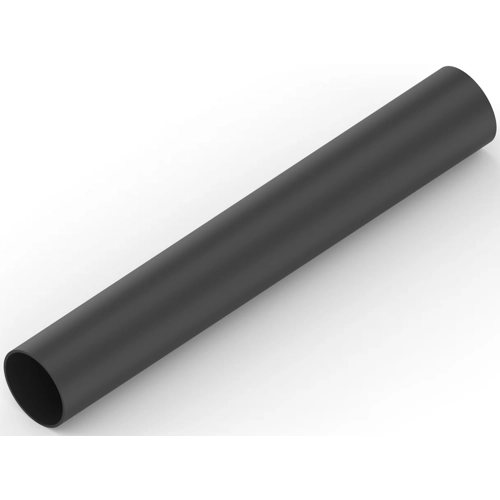

Heatshrink tubing, 2:1, (3.2/1.6 mm), PE, black, NB13982001
Unit Price (€ / pc.)
6.9020 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9020 €
5 pcs.
6.5450 €
10 pcs.
6.1285 €
25 pcs.
5.5811 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, NB13982001, Raychem
The NB13982001 is a heat-shrinkable tub that seals and protects simple in-line splices, bimetallic joints, and components from fluids, moisture, and corrosion. This product has thin adhesive lining that bonds to outer tubing and surface below, forming a positive environmental seal. Also repairs damaged wire insulation, especially where flexibility is required and provides one step electrical insulation and moisture sealing.
Features
- 2:1 shrink ratio
- Flexibility of both tubing and adhesive
- Moisture seal that is resistant to bending of the substrate
- Good mechanical strength and cut-through resistance
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 1.22 m | |
| Material | PE | |
| Inch Size | 1/8 | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Wall thickness | 0.91 mm | |
| Shrinking rate | 2:1 | |
| Inner diameter before shrinkage | 3.2 mm | |
| Inner diameter after shrinkage | 1.6 mm | |
| Shrinking temperature | 95 °C | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
