NB13114001 | Raychem

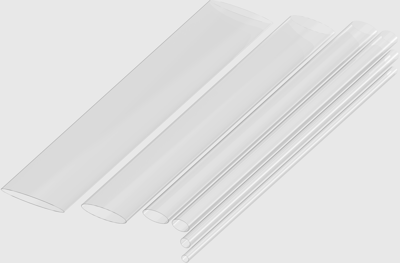

Heatshrink tubing, 2:1, (25.4/12.7 mm), PE, clear, NB13114001
No longer in assortment
Unit Price (€ / mtr.)
3.1892 € *
Available: 54 mtr.
Heat shrink tubing, NB13114001, Raychem
The NB13114001 is a high-quality, heat-shrinkable product for a wide variety of uses. It has become the industry standard for insulation, strain relief, wire bundling, and color-coding in both commercial and military applications. This product's tubing has excellent physical, chemical, and electrical properties that meet industrial and military requirements for a highly reliable, general-purpose tubing.
Features
- 2:1 shrink ratio
- Flexible: conforms to irregular shapes
- Flame-retardant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 135 °C | |
| Wall thickness | 0.89 mm | |
| Colour | clear | |
| Inner diameter after shrinkage | 12.7 mm | |
| Shrinking temperature | 95 °C | |
| Material | PE | |
| Shrinking rate | 2:1 | |
| Inch Size | 1 | |
| min. operating temperature | -55 °C | |
| Inner diameter before shrinkage | 25.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
