NB12842001 | Raychem

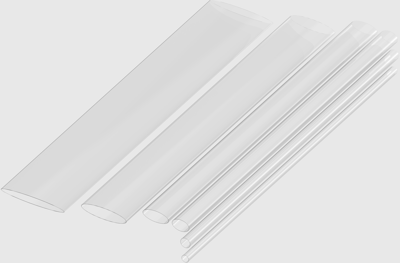

Heatshrink tubing, 2:1, (12.7/6.4 mm), PE, clear, NB12842001
Unit Price (€ / pc.)
7.4375 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
7.44 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4375 €
10 pcs.
6.8425 €
50 pcs.
6.1642 €
100 pcs.
5.5454 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, NB12842001, Raychem
The NB12842001 is a high-quality, heat-shrinkable product for a wide variety of uses. It has become the industry standard for insulation, strain relief, wire bundling, and color-coding in both commercial and military applications. This product's tubing has excellent physical, chemical, and electrical properties that meet industrial and military requirements for a highly reliable, general-purpose tubing.
Features
- 2:1 shrink ratio
- Flexible: conforms to irregular shapes
- Flame-retardant
- RoHS compliant
Technical specifications
| Colour | clear | |
| Shrinking temperature | 95 °C | |
| Inner diameter before shrinkage | 12.7 mm | |
| Wall thickness | 0.64 mm | |
| Length | 1.22 m | |
| Inner diameter after shrinkage | 6.4 mm | |
| min. operating temperature | -55 °C | |
| Material | PE | |
| Inch Size | 1/2 | |
| max. operating temperature | 135 °C | |
| Shrinking rate | 2:1 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 39173200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
