NB12042001 | Raychem
Heatshrink tubing, 3:1, (9/3 mm), PE, black, NB12042001
This item is no longer available.
As an alternative, we recommend the following item:
Heatshrink tubing, 3:1, (9/3 mm), PE, crosslinked, black, NB12042001
Order No.: 91F2146
Manufacturer: Raychem
per pc. 5.7001 € *
Heat shrink tubing, NB12042001, Raychem

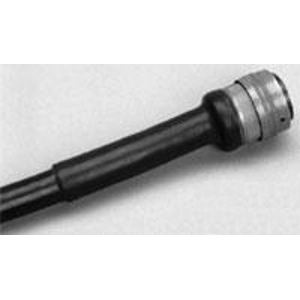

The NB12042001is a heat-shrinkable tub that environmentally seals and protects components and interconnections. High expansion ratio makes it possible to repair most damaged cable jackets without removing connectors.
Features
- Medium wall provides increased mechanical protection
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter before shrinkage | 9 mm | |
| max. operating temperature | 110 °C | |
| Length | 1.22 m | |
| min. operating temperature | -55 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 3 mm | |
| Material | PE | |
| Wall thickness | 1.4 mm | |
| Shrinking rate | 3:1 | |
| Shrinking temperature | 80 °C | |
| Inch Size | 9/3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
