NB11242001 | Raychem

Heatshrink tubing, 3:1, (40/13 mm), PE, crosslinked, black, NB11242001

Order No.: 91F2168
EAN: 4099891278403
MPN:
NB11242001
ATUM-40/13-0-STK
Series: ATUM

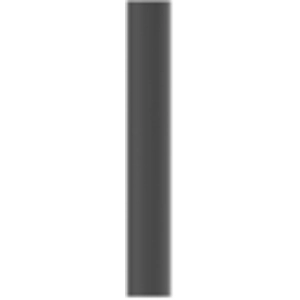

NB11242001 Raychem Heat Shrink Tubing Image 1
NB11242001 Raychem Heat Shrink Tubing Image 2
NB11242001 Raychem Heat Shrink Tubing Image 3
Image may differ
Unit Price (€ / pc.)
21.7413 € *
Available: 14 pcs.
Total Price:
21.74 € *
Price list
Quantity
Price per unit*
1 pcs.
21.7413 €
25 pcs.
20.1229 €
50 pcs.
17.7072 €
100 pcs.
16.1007 €
*incl. VAT plus shipping costs
Subject to prior sale

Heatshrink tubing, type TE Connectivity/Raychem ATUM-0.

Semi-stiff, coated with melting adhesive, for general-purpose use, provides absolutely moisture proof sheathing. The tubing has good mechanical strength and is resistant to environmental conditions

Technical specifications
Filter Property Value
Shrinking rate 3:1
Inner diameter before shrinkage 40 mm
Inner diameter after shrinkage 13 mm
Length 1.2 m
min. operating temperature -55 °C
max. operating temperature 110 °C
contains glue inside No
Wall thickness 2.54 mm
Colour black
Material PE, crosslinked
Shrinking temperature 80 °C
Inch Size 1 1/2
Logistics
Property Value
Country of origin CN
Customs tariff number 39173200
Compliance
Property Value
Substance description 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
