NB09312001 | Raychem

Heatshrink tubing, 3:1, (12/4 mm), PE, crosslinked, black, NB09312001

Order No.: 91F2149
EAN: 4099891278366
MPN:
NB09312001
ATUM-12/4-0-STK
Series: ATUM

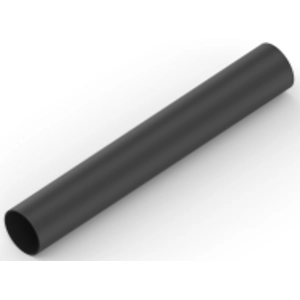

NB09312001 Raychem Heat Shrink Tubing Image 1

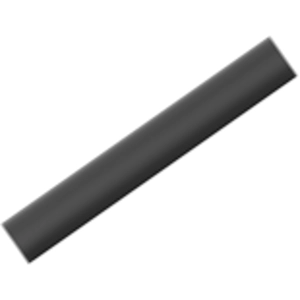

NB09312001 Raychem Heat Shrink Tubing Image 2

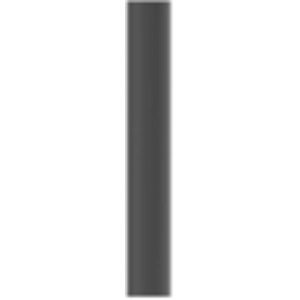

NB09312001 Raychem Heat Shrink Tubing Image 3
Image may differ
Unit Price (€ / pc.)
5.3788 € *
Available: 26 pcs.
Total Price:
5.38 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3788 €
25 pcs.
4.7600 €
50 pcs.
4.3435 €
100 pcs.
3.9389 €
*incl. VAT plus shipping costs
Subject to prior sale

Heatshrink tubing, type TE Connectivity/Raychem ATUM-0.

Semi-stiff, coated with melting adhesive, for general-purpose use, provides absolutely moisture proof sheathing. The tubing has good mechanical strength and is resistant to environmental conditions

Technical specifications
Filter Property Value
Inner diameter after shrinkage 4 mm
Material PE, crosslinked
Inner diameter before shrinkage 12 mm
max. operating temperature 110 °C
Shrinking rate 3:1
contains glue inside No
Shrinking temperature 80 °C
min. operating temperature -55 °C
Colour black
Wall thickness 1.78 mm
Length 1.2 m
Logistics
Property Value
Country of origin CN
Customs tariff number 39173200
Compliance
Property Value
Substance description 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
