NB09012001 | Raychem

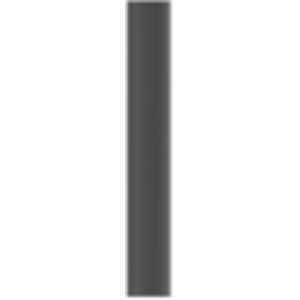

Heatshrink tubing, 4:1, (12/3 mm), PE, crosslinked, black, NB09012001
Unit Price (€ / pc.)
8.2229 € *
Available: 23 pcs.
Total Price:
8.22 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2229 €
25 pcs.
7.7112 €
50 pcs.
6.6878 €
100 pcs.
5.9143 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, VERSAFIT-3/64-0-STK, Raychem
VERSAFIT-3/64-0-STK is a highly flame-retardant, low recovery temperature, heat-shrinkable tubing. This product is a cost-effective choice for many commercial and military applications. Also this tubing is made from a specially formulated, crosslinked polyolefin to provide high flameretardance, excellent flexibility, and a low shrink temperature (to reduce installation time).
Features
- 2:1 Shrink ratio
- Very flexible; doesn’t easily wrinkle when bent
- Hot stamps extremely well
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Inner diameter before shrinkage | 12 mm | |
| max. operating temperature | 110 °C | |
| Length | 1.2 m | |
| min. operating temperature | -55 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 3 mm | |
| Material | PE, crosslinked | |
| Wall thickness | 1.4 mm | |
| Shrinking rate | 4:1 | |
| Shrinking temperature | 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
