F15113-000 | Raychem
Heatshrink tubing, 2:1, (2.38/1.17 mm), PE, white, F15113-000
Unit Price (€ / pc.)
1.2971 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
10 pcs.
1.1662 €
50 pcs.
1.0472 €
100 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, F15113-000, Raychem

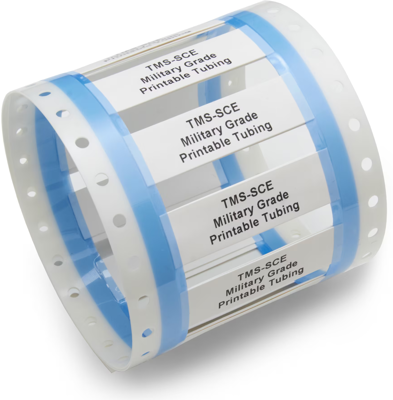

The F15113-000 is a thicker rugged wall, 2:1 shrink ratio sleeve, which can aid with handling and installation. Suitable for a wide variety of applications, including aerospace, military, industrial and energy. This product is made from durable, flame retarded, radiation cross linked heat shrinkable polyolefin. Supplied in ‘ladder format’, sleeves are presented for ease of printing and kitting.
Features
- Self-extinguishing, non-flame propagating
- Can be laser marked for superior performance
- Military grade performance
- Pre-termination Cable Identification
Technical specifications
| Shrinking rate | 2:1 | |
| min. operating temperature | -55 °C | |
| Inch Size | 3/32 | |
| Inner diameter before shrinkage | 2.38 mm | |
| max. operating temperature | 135 °C | |
| Wall thickness | 0.51 mm | |
| Material | PE | |
| Colour | white | |
| Inner diameter after shrinkage | 1.17 mm | |
| Length | 50 mm |
Download
Logistics
| Customs tariff number | 39269097 |
| Country of origin | CZ |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
