EM7482-000 | Raychem

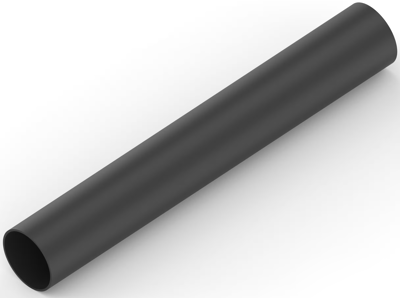

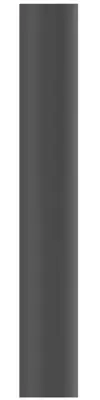

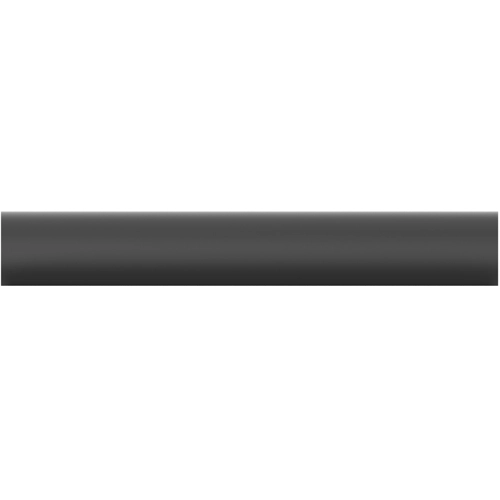

Heatshrink tubing, 2:1, (2.9/1.25 mm), PE, black, EM7482-000
Unit Price (€ / mtr.)
2.5347 € *
Available: 0 mtr.
Available in 5 Days: 800 mtr.
Leadtime: 11 Weeks **
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 mtr.
2.5347 €
10 mtr.
2.3086 €
50 mtr.
2.0706 €
100 mtr.
1.8683 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, EM7482-000, Raychem
The EM7482-000 is a heat-shrinkable tub that's made from a specially formulated, crosslinked polyolefin with low recovery temperature, excellent flexibility, and high flame-retardance. This product has a higher temperature rating that exhibits better thermal stability and resistance to physical abuse. Also offers a faster, easier, more reliable replacment for molding in place, dip coating and tape wrapping.
Features
- Electrivally insulates and protects in-line components, disconnect terminals, and splices
- Bundies wires for very flexible ligh-duty harnesses
- Strain -relieves electrical wire connections for long-term reliability
Technical specifications
| Colour | black | |
| Shrinking temperature | 70 °C | |
| Inner diameter before shrinkage | 2.9 mm | |
| Wall thickness | 0.44 mm | |
| Inner diameter after shrinkage | 1.25 mm | |
| min. operating temperature | -30 °C | |
| Material | PE | |
| max. operating temperature | 125 °C | |
| Shrinking rate | 2:1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
