EL7360-000 | Raychem
Heatshrink tubing, 2:1, (19/9.5 mm), PVDF, white, EL7360-000
Unit Price (€ / mtr.)
39.3057 € *
Available in 5 Days: 100 mtr. - if ordered today

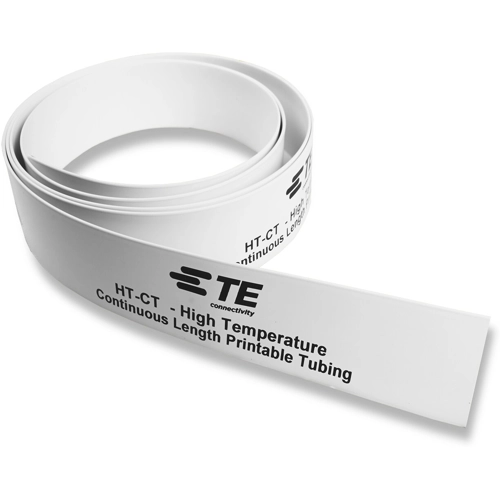

High temperature marker sleeve, EL7360-000, Raychem
The EL7360-000 is a high temperature marker sleeve, that is specially developed radiation cross-linked material. Formulated to give high temperature performance and low out-gassing, this product has an operating temperature up to 225°C suitable for military and aerospace applications.
This thin walled heat shrinkable tube, manufactured with e-beam technology gives users the ability to shrink the supplied tube with no damage to material or printed text.
Features
- Excellent chemical resistance
- Resistant to key aerospace, military, rail and industrial fluids
- More open profile for easier use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 2:1 | |
| Inner diameter before shrinkage | 19 mm | |
| Inner diameter after shrinkage | 9.5 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 225 °C | |
| Wall thickness | 0.38 mm | |
| Colour | white | |
| Material | PVDF | |
| Inch Size | 3/4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
