EH2297-000 | Raychem

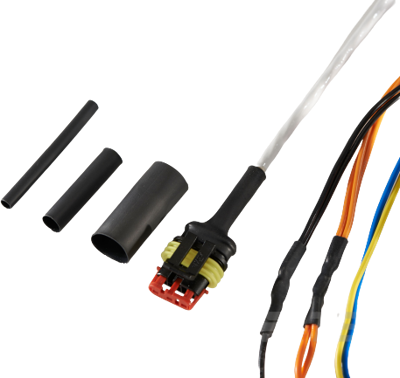

Heatshrink tubing, 4:1, (12/3 mm), PE, black, EH2297-000
Unit Price (€ / pc.)
11.2574 € *
Available in 5 Days: 445 pcs. - if ordered today
Total Price:
11.26 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2574 €
10 pcs.
10.3530 €
50 pcs.
9.3177 €
100 pcs.
8.3895 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, VERSAFIT-1/16-0-SP-SM, Raychem
VERSAFIT-1/16-0-SP-SM is a highly flame-retardant, low recovery temperature, heat-shrinkable tubing. This product is a cost-effective choice for many commercial and military applications. Also this tubing is made from a specially formulated, crosslinked polyolefin to provide high flameretardance, excellent flexibility, and a low shrink temperature (to reduce installation time).
Features
- 2:1 Shrink ratio
- Very flexible; doesn’t easily wrinkle when bent
- Hot stamps extremely well
- RoHS compliant
Technical specifications
| Colour | black | |
| Shrinking temperature | 60 °C | |
| contains glue inside | No | |
| Inner diameter before shrinkage | 12 mm | |
| Wall thickness | 1.4 mm | |
| Inner diameter after shrinkage | 3 mm | |
| min. operating temperature | -40 °C | |
| Material | PE | |
| max. operating temperature | 110 °C | |
| Shrinking rate | 4:1 |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| SVHC free | No |
| RoHS conform | Yes |
