EC9859-000 | Raychem

Heatshrink tubing, 2:1, (12.7/6.3 mm), polyolefine, yellow

Order No.: 72P2769
EAN: 4099891655969
Series: ZHD-SCE
default L

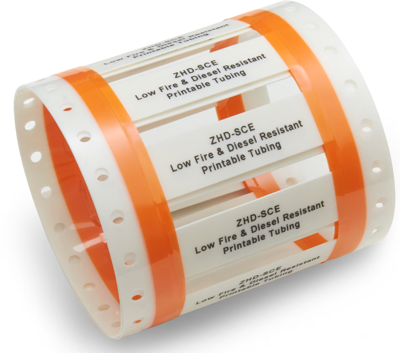

Image may differ
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Available in 5 Days: 4,000 pcs.
Leadtime: 1 Week **
Total Price:
1.64 € *
Price list
Price per unit*
55 pcs.
1.6422 €
300 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

Low-fire-hazard wire, EC9859-000, Raychem

The EC9859-000 is designed specifically to bridge the gap for installations where the highest performance is demanded from an identification sleeve, without compromising on safety or capability. This product also is presented as cut sleeves organised in ladder format.


  • Halogen free, low smoke
  • Low toxic fumes
  • Non-flame propagating
  • Shrink ratio 2:1
Technical specifications
Colour yellow
Inner diameter after shrinkage 6.3 mm
Inner diameter before shrinkage 12.7 mm
Length 25 mm
Material polyolefine
max. operating temperature 135 °C
min. operating temperature -55 °C
Shrinking rate 2:1
Wall thickness 0.65 mm
Inch Size 12.7
Country of origin CZ
Customs tariff number 39173900
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
