EC6661-000 | Raychem
Heatshrink tubing, 2:1, (2.4/0.7 mm), PVDF, white, EC6661-000
Unit Price (€ / pc.)
2.0944 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0944 €
10 pcs.
1.9397 €
25 pcs.
1.8088 €
50 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale

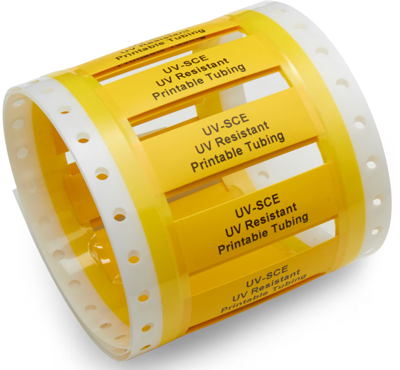

Identification marker sleeve, EC6661-000, Raychem
The EC6661-000 is a ultra-violet light resistant, heat shrink identification marker sleeve that is presented as cut sleeve organised in ladder format. This product is designed specifically to allow customer to identify wires and cable in out door environments where some exposure to UV light is possible.
Features
- UV Resistant
- Good Temperature resistance
- Non-flame propagating
- Resistant to key rail and industrial fluids including diese
Applications
- Suitable for installations that require outstanding fluid resistance
- Rail, Mass transit
- Aerospace, Marine
- Heavy Industrial
- Energy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter after shrinkage | 0.7 mm | |
| Wall thickness | 0.38 mm | |
| max. operating temperature | 200 °C | |
| min. operating temperature | -55 °C | |
| Material | PVDF | |
| Length | 50 mm | |
| Colour | white | |
| Shrinking rate | 2:1 | |
| Inch Size | 3/32 | |
| Inner diameter before shrinkage | 2.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
