E77288-000 | Raychem
Heatshrink tubing, 2:1, (4.74/2.36 mm), PE, black, E77288-000
Unit Price (€ / pc.)
39.7341 € *
Available in 5 Days: 20 pcs. - if ordered today

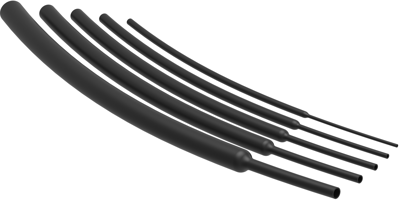

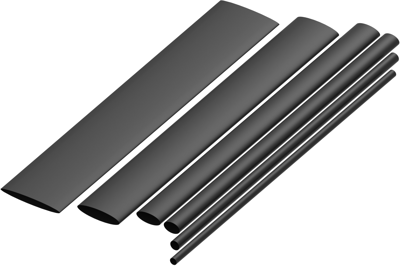

Heat shrink tubing, E77288-000, Raychem
The E77288-000 offers excellent physical, chemical, and electrical properties that meet or exceed commercial, industrial and military standards for highly reliable, general purpose tubing. This product provides electrical insulation and strain relief of in-line components, electrical connections, wire terminations, and splices. It can be used to bundle wires for flexible light duty harnesses.
Features
- 2:1 shrink ratio
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter before shrinkage | 4.74 mm | |
| max. operating temperature | 135 °C | |
| Length | 15.2 m | |
| min. operating temperature | -55 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 2.36 mm | |
| Material | PE | |
| Wall thickness | 0.5 mm | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 95 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
