E66448-000 | Raychem

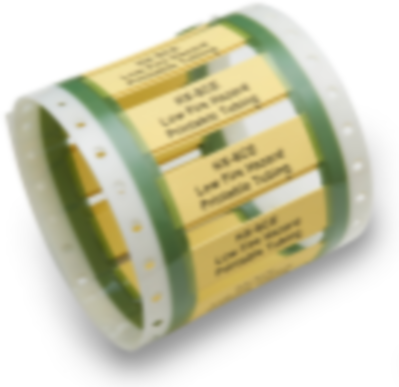

Heatshrink tubing, 2:1, (6.4/3.1 mm), yellow, E66448-000
Order No.: 39P9075
EAN: 4099891276843
MPN:
E66448-000
HX-SCE-1K-6.4-50-4
Unit Price (€ / pc.)
2.4276 € *
Available in 5 Days: 16,275 pcs. - if ordered today
Total Price:
2.43 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4276 €
10 pcs.
2.2134 €
50 pcs.
1.9873 €
100 pcs.
1.7969 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, V2-1.0-0-SP-SM, Raychem
V2-1.0-0-SP-SM is a highly flame-retardant, low recovery temperature, metric-sized heat-shrinkable tubing. This product is a cost-effective, environmentally friendly choice for many commercial applications. Also this tubing is made from a specially formulated, crosslinked polyolefin with low recovery temperature, excellent flexibility, and high flame-retardance.
Features
- 2:1 Shrink ratio
- Very flexible; doesn’t easily wrinkle when bent
- Hot stamps extremely well
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| Inner diameter after shrinkage | 3.1 mm | |
| Inner diameter before shrinkage | 6.4 mm | |
| max. operating temperature | 105 °C | |
| contains glue inside | No | |
| Length | 50 mm | |
| Shrinking rate | 2:1 | |
| Colour | yellow |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SE |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
