CV25382001 | Raychem

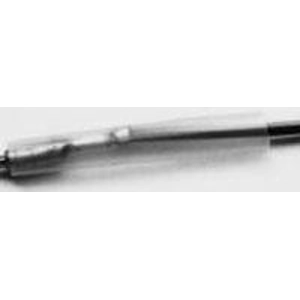

Heatshrink tubing, 2:1, (2.4/1.2 mm), PVDF, transparent, CV25382001
Unit Price (€ / pc.)
2.3800 € *
Available: 32 pcs.
Available in 5 Days: 1,863 pcs. - if ordered today
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.2015 €
25 pcs.
2.0468 €
50 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, TMS-SCE-1K-1/2-2.0-9, Raychem
TMS-SCE-1K-1/2-2.0-9 is a heat shrinkable wire marker made from durable, flame retardant, heat shrinkable polyolefin, which is designed to meet the needs of manufacturers with high performance requirements.
Features
- 3:1 Shrink ratio
- Quick recovery for heat sensitive areas
- Lightweight for aerospace applications
- UL recognised
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking temperature | 155 °C | |
| Inner diameter after shrinkage | 1.2 mm | |
| Wall thickness | 0.25 mm | |
| contains glue inside | No | |
| Shrinking rate | 2:1 | |
| min. operating temperature | -55 °C | |
| Colour | transparent | |
| Material | PVDF | |
| Inner diameter before shrinkage | 2.4 mm | |
| max. operating temperature | 175 °C | |
| Length | 1.2 m |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
