CB5364-000 | Raychem
Heatshrink tubing, 3:1, (33.02/9.52 mm), PE, black, CB5364-000
Unit Price (€ / pc.)
46.1244 € *
Available in 5 Days: 49 pcs. - if ordered today

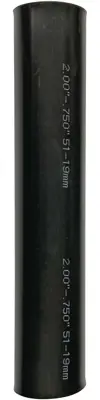

Heat shrink tubing, CB5364-000, Raychem
The CB5364-000 provides a simple, positive splice-sealing method that offers protection under adverse environmental conditions. Tubing supplied with standard sealant provides water sealing and environmental protection in wet or underground applications. This product's polymer tubing has excellent insulating, abrasion-resistance, and strain-relief properties.
Features
- Thick adhesive liner forms an effective barrier against fluids and moisture
- Expansion ratios as high as 3:1
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter before shrinkage | 33.02 mm | |
| Wall thickness | 3.05 mm | |
| Material | PE | |
| Shrinking rate | 3:1 | |
| Shrinking temperature | 90 °C | |
| max. operating temperature | 110 °C | |
| Length | 1.219 m | |
| min. operating temperature | -55 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 9.52 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
