CB5335-000 | Raychem
Heatshrink tubing, 3:1, (19.05/5.59 mm), PE, black, CB5335-000
Unit Price (€ / pc.)
31.3089 € *
Standard delivery time from the manufacturer is: 12 Weeks

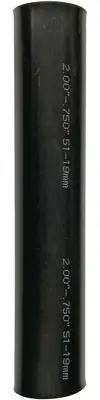

Heat shrink tubing, CB5335-000, Raychem
The CB5335-000 provides a simple, positive splice-sealing method that offers protection under adverse environmental conditions. Tubing supplied with standard sealant provides water sealing and environmental protection in wet or underground applications. This product's polymer tubing has excellent insulating, abrasion-resistance, and strain-relief properties.
Features
- Thick adhesive liner forms an effective barrier against fluids and moisture
- Expansion ratios as high as 3:1
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 1.219 m | |
| Inner diameter before shrinkage | 19.05 mm | |
| Shrinking rate | 3:1 | |
| Wall thickness | 2.41 mm | |
| Inner diameter after shrinkage | 5.59 mm | |
| Shrinking temperature | 90 °C | |
| Colour | black | |
| Material | PE | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
